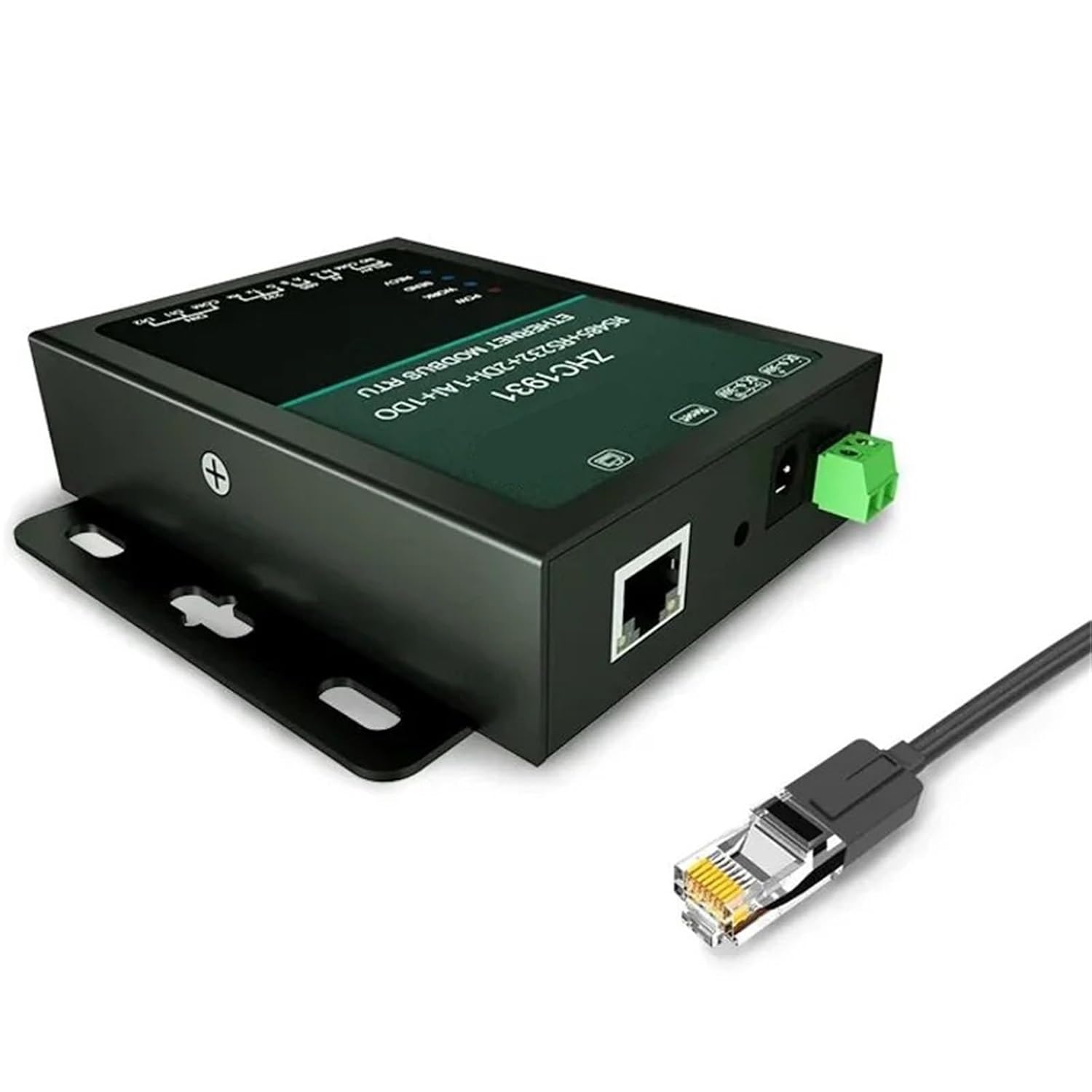

RS485/232/AI/DI to Ethernet Gateway with RS485 RJ45 Modbus Converter Communication & Networking Product Support MQTT HTTP

Control Module
Products Description
Product Paramenters
POWER
NETWORK
POWER SUPPLY
9~36V
NETWORK TYPE
ETHERNET
Working Current
200mA(aver)/340mA(max)@9V
NUMBER
LAN*1
50mA(aver)/850mA(max)@36V
PORT TYPE
Ethernet signal. RJ45
SERIAL PORT
AI
Serial Port
RS485*1
Number
1
Standard
RS485: 2 Two terminals(A)
Standard
AI*1 COM*2
Data bits
8. 9
DO
Stop bits
0.5. 1. 1.5. 2
Standard
(NOOM)*1
Parity bits
NONEVENDD
AC
250V 10A
Number
1
DC
30V 10A
Serial Port
RS232*1
DI
Standard
Tx. Rx G
Standard
DI*2 COM*1
Size
93*69*25mm
Detect Range
5~50v High 0~2v Low
MQTT Ethernet Gateway RJ45 Modbus Converter with RS485
Basic Function
1. Stable Ethernet Interface 5. Analog Data Acquisition RTU
2. Modbus and MQTT 6. FREE ZH-Cloud Platform
3. Local Logic Operation 7. Threshold Report
4. RS485 Active Reporting 8. Obtain IP Automatically
MQTT Ethernet Gateway RJ45 Modbus Converter with RS485
1. Server/Client Mode
Client provides client connection for network server. Actively initiate a connection request to the server and establish a connection. used to realize the interaction of serial data and server data.
Commonly used to communicate with clients in the LAN. It is suitable for scenarios where there is no server in the LAN and multiple computers request data from the server.
2. Socket Function
Socket1-4 runs simultaneously and connects to different networks for data transmission.
3. Set the follow Logic of Ports Between Devices
Break traditional connection limits. Suitable for different usage scenarios.
MQTT Ethernet Gateway RJ45 Modbus Converter with RS485
1. Industrial Automation
Suitable for industrial automation production lines and can monitor industry data in real time.
2.Intelligent Agricultural
Long-distance transmission can realize data monitoring of greenhouse temperature. humidity and CO2 concentration.
==========

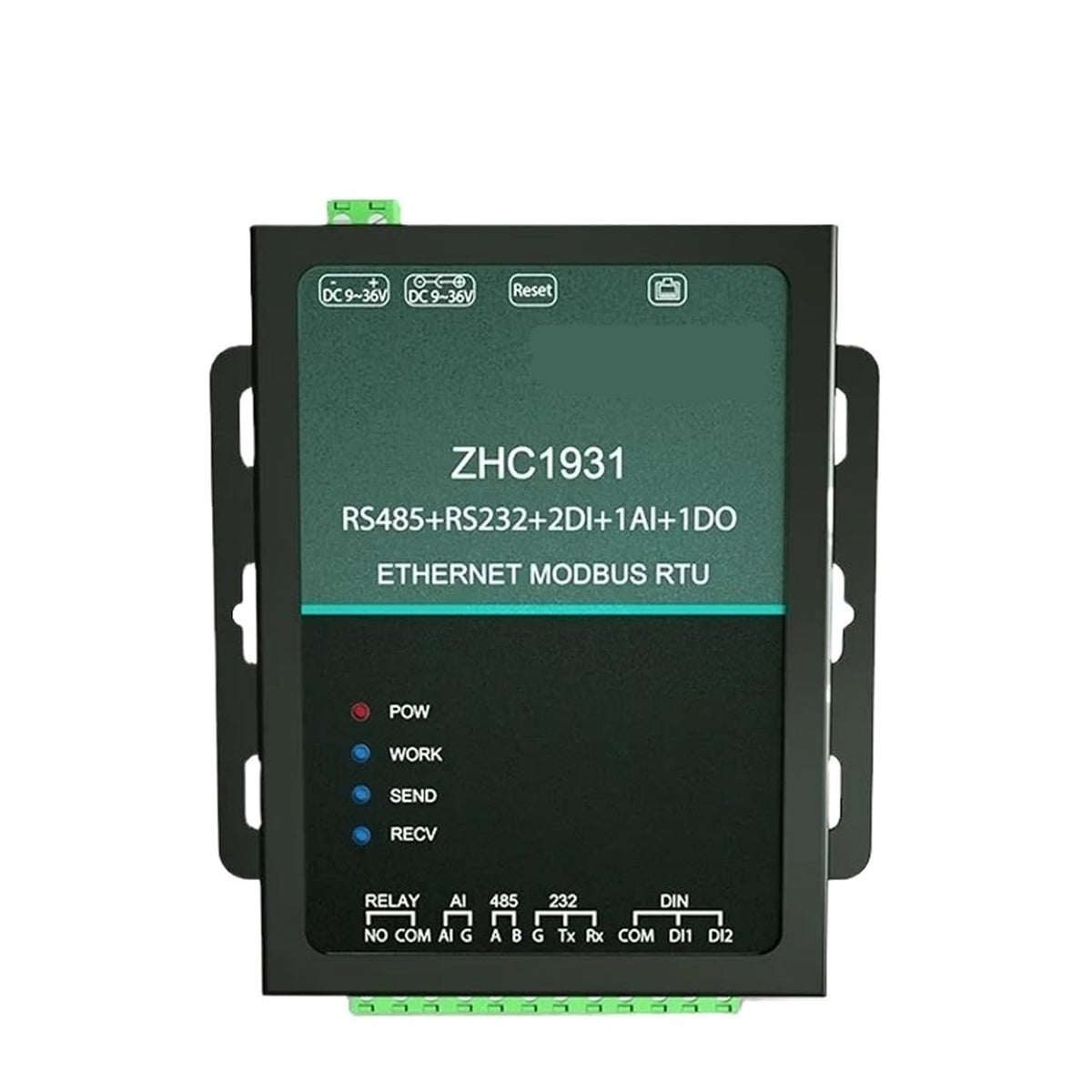

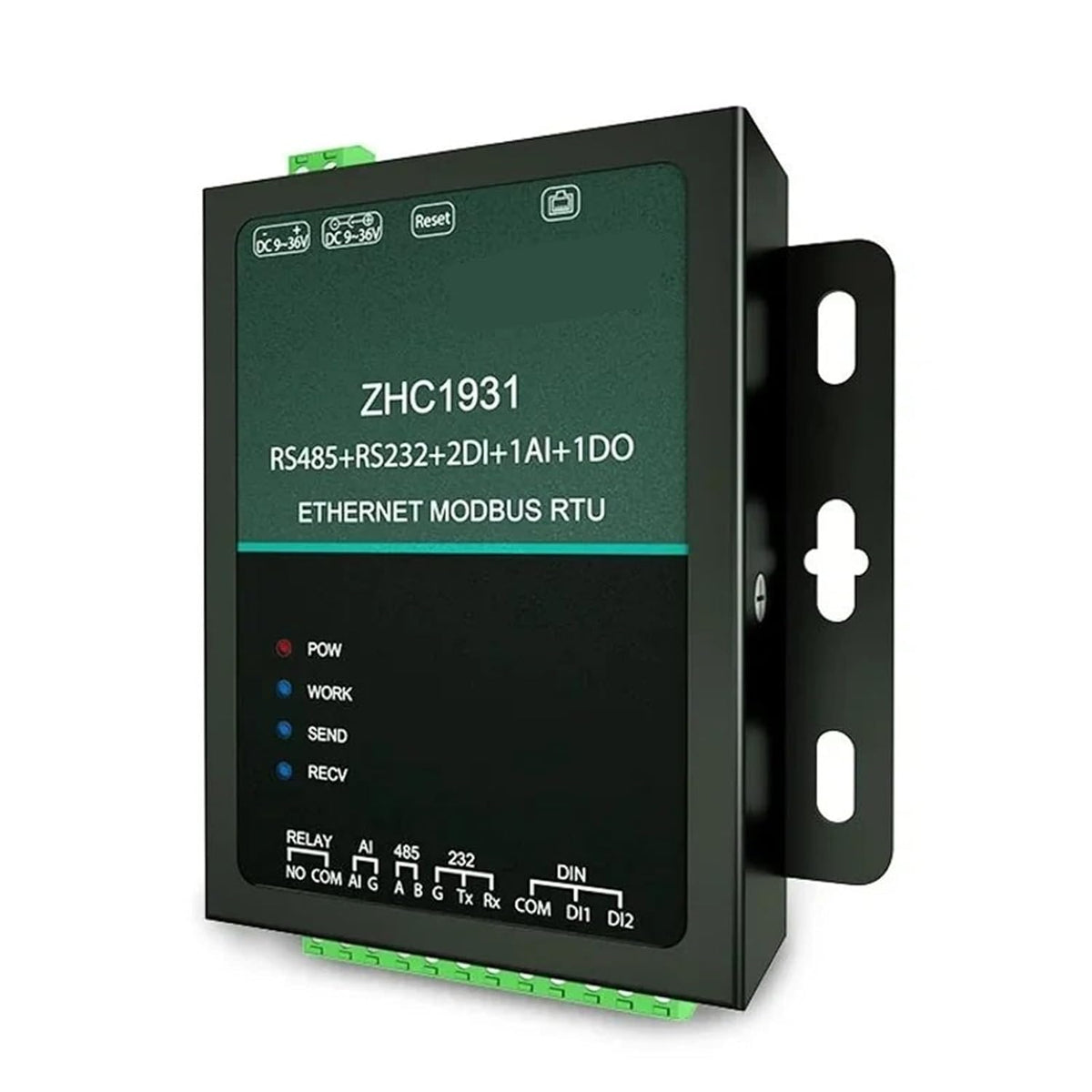

Model Number : ZHC1931
Place of Origin : SICHUAN.
Chipset : STM32
Application : COMMUNICATION
Product name : ETHERNET RTU
Type : Intelligent Network Devices
Protocol : MQTT
Interface : RJ45/RS485/1AI/1DO/2DI
Weight : 0.6kg
Power supply : DC9-36V
Material : Galvanized Steel Sheet
