Rockville DS10 2-Channel Power Amplifier 4000W Peak / 1000W RMS, 1U Rack Mount, Class D, Pro Audio DJ Amp for Speakers or Subs
$56.99
Skip to product information
High‑Fidelity Power & 10Hz–40kHz Response: Delivers a true 1000W RMS @ 8Ω bridged (4000W peak) with an ultra‑wide 10Hz–40kHz frequency range. From deep sub‑bass to crisp highs. the amplifier maintains fast. clean. and distortion‑free dynamics even during demanding transient peaks.
Stereo. Parallel (Dual Mono). & Bridged Modes: Maximum versatility for any rig. Use Stereo for L/R mains. Bridged for a single 1000W sub. or Parallel Mode for a dual-mono signal. Parallel mode is essential for monitor setups. allowing you to run the same mono signal to multiple monitors while maintaining independent volume control.
Built-in 110Hz Crossover for Subs & Tops: Eliminate the need for external gear with the integrated 3-way crossover switch (Full Range. 110Hz LPF. or 110Hz HPF). With a damping factor of 165. the DS10 provides the "grip" needed to control subwoofer cones for tight. accurate bass rather than muddy. loose sound.
Pro-Grade Stability & Low Noise: Engineered with a Signal-to-Noise ratio of 90dB and THD+N <0.07%. ensuring your audio remains clean even at high volumes. The variable-speed quiet cooling fans and 1U slim chassis allow for dense rack mounting without the risk of overheating or excessive mechanical noise.
Comprehensive Protection & Monitoring: Features a built-in limiter and 540mV–2.5V input sensitivity matching to protect your drivers from clipping. The front panel provides real-time feedback via dB LED meters. while internal circuitry guards against short circuits. thermal overload. and DC offset to keep your gear safe.
Rockville DS10 2-Channel Power Amplifier 4000W Peak / 1000W RMS, 1U Rack Mount, Class D, Pro Audio DJ Amp for Speakers or Subs
$56.99
Stereo. Parallel (Dual Mono). & Bridged Modes: Maximum versatility for any rig. Use Stereo for L/R mains. Bridged for a single 1000W sub. or Parallel Mode for a dual-mono signal. Parallel mode is essential for monitor setups. allowing you to run the same mono signal to multiple monitors while maintaining independent volume control.
Built-in 110Hz Crossover for Subs & Tops: Eliminate the need for external gear with the integrated 3-way crossover switch (Full Range. 110Hz LPF. or 110Hz HPF). With a damping factor of 165. the DS10 provides the "grip" needed to control subwoofer cones for tight. accurate bass rather than muddy. loose sound.
Pro-Grade Stability & Low Noise: Engineered with a Signal-to-Noise ratio of 90dB and THD+N <0.07%. ensuring your audio remains clean even at high volumes. The variable-speed quiet cooling fans and 1U slim chassis allow for dense rack mounting without the risk of overheating or excessive mechanical noise.
Comprehensive Protection & Monitoring: Features a built-in limiter and 540mV–2.5V input sensitivity matching to protect your drivers from clipping. The front panel provides real-time feedback via dB LED meters. while internal circuitry guards against short circuits. thermal overload. and DC offset to keep your gear safe.
Power Ratings:
RMS Power Output:
- Stereo 4 Ohm: 2 x 500W
- Stereo 8 Ohm: 2 x 300W
- Bridged 8 Ohm: 1 x 1000w
Peak Power Output:
- Stereo 4 Ohm: 2 x 2000W
- Stereo 8 Ohm: 2 x 1200W
- Bridged 8 Ohm: 1 x 4000w

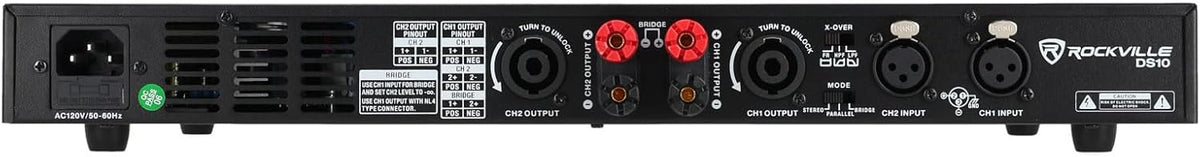

Terminals:
Input Terminals:
- XLR Ch1 & Ch2 inputs
Output Terminals:
- Speakon outputs Ch1 & Ch2
Features:
- Rockville DS10 1000w RMS Class D 2 Channel Power Amplifier Pro/DJ Amp
- 1U rack space and only 6.6 Lbs
- Built in crossover switch (full range. 110 LPF Hz. 110 HPF Hz) allows amp to be used with full range PA speakers. or Subwoofer(s)

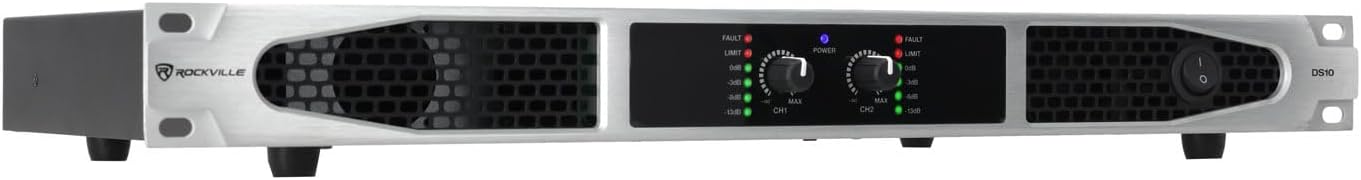

- Front Panel displays volume in dB per channel via LEDS
- Built in limiter protects your speakers from distortion and clipping
- Power. signal. limit. and fault LED indicators on front of amp
- Speaker short circuit. thermal over load. DC over load
- Built-in variable speed quiet cooling fans
- Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
- Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
- Channel 1 & 2 Limiting Led Indicators
- Channel 1 & 2 Separate Level Controls
- Heavy duty rack mount ears and removable feet give you multiple options
- Level controls for precise setting and matching of sensitivity
- Can power (2) or (4) 8-ohm speakers. (2) 4-ohm speakers (4) or (8) 16-ohm speakers
- User serviceable fuse (10A. 250V)
- Frequency Response:10 Hz – 40 Khz at +/-3dB
- Input Impedance: 10K Ohm Balanced
- Input signal sensitivity: 540mV – 2.5V
- Stereo Separation (Crosstalk) : -57.7dB at 5kHz
- Damping factor: ( 100Hz. 10w. 4 ohms): 165
- Output impedance at speaker terminals: 0.0836 Ohms
- THD+N vs Frequency <0.07% at 1 Watt RMS 20Hz-20kHz
- Signal-to-Noise: 90 dBA max output
- SLEW RATE (input filter limited) : 29v/uS
- Power Requirements: 110V / 50-60Hz
- Dimensions: 19” x 10.24” x 1.97”
Key Features:
- True 1000W RMS Power: 2 x 500W @ 4Ω / 2 x 300W @ 8Ω / 1 x 1000w @>
- Slim & Lightweight: Only 6.6 lbs and 1U rack-mountable
- Versatile Crossover: Choose Full Range. 110Hz LPF. or 110Hz HPF
- Smart Protection: Built-in limiter. thermal. DC Overload & short circuit protection
- Quiet Cooling: Variable Speed low-noise fans prevent overheating (speed increases as temperature increases)
- Pro Connectivity: XLR inputs & Speakon outputs for secure connections
- Stereo & Parallel Modes: Use for two speakers. four speakers. or monitors
With high efficiency. rock-solid reliability. and unmatched power for the price. the Rockville DS10 is the perfect amplifier for DJs. bands. event venues. and pro audio setups. Whether you're running a high-energy gig or or powering speakers in your restaurant. this amp delivers the clean. punchy sound you need - without the bulk.
