4K 1x8 HDMI Extender Splitter 70m/230ft HDMI Over Ethernet Splitter POC Satellite TV Splitters
4K 1x8 HDMI Extender Splitter 70m/230ft HDMI Over Ethernet Splitter POC Satellite TV Splitters
POC: Splitter Powering 8 Receivers. only need 1 power supply.
Audio: Support audio formats: LPCM 7.1CH. Dolby True HD. and DTS-HD Master Audio
Design: Compact design for easy and flexible installation. with 2x Mounting ears and 8 × Machine Screw (KM3*4).

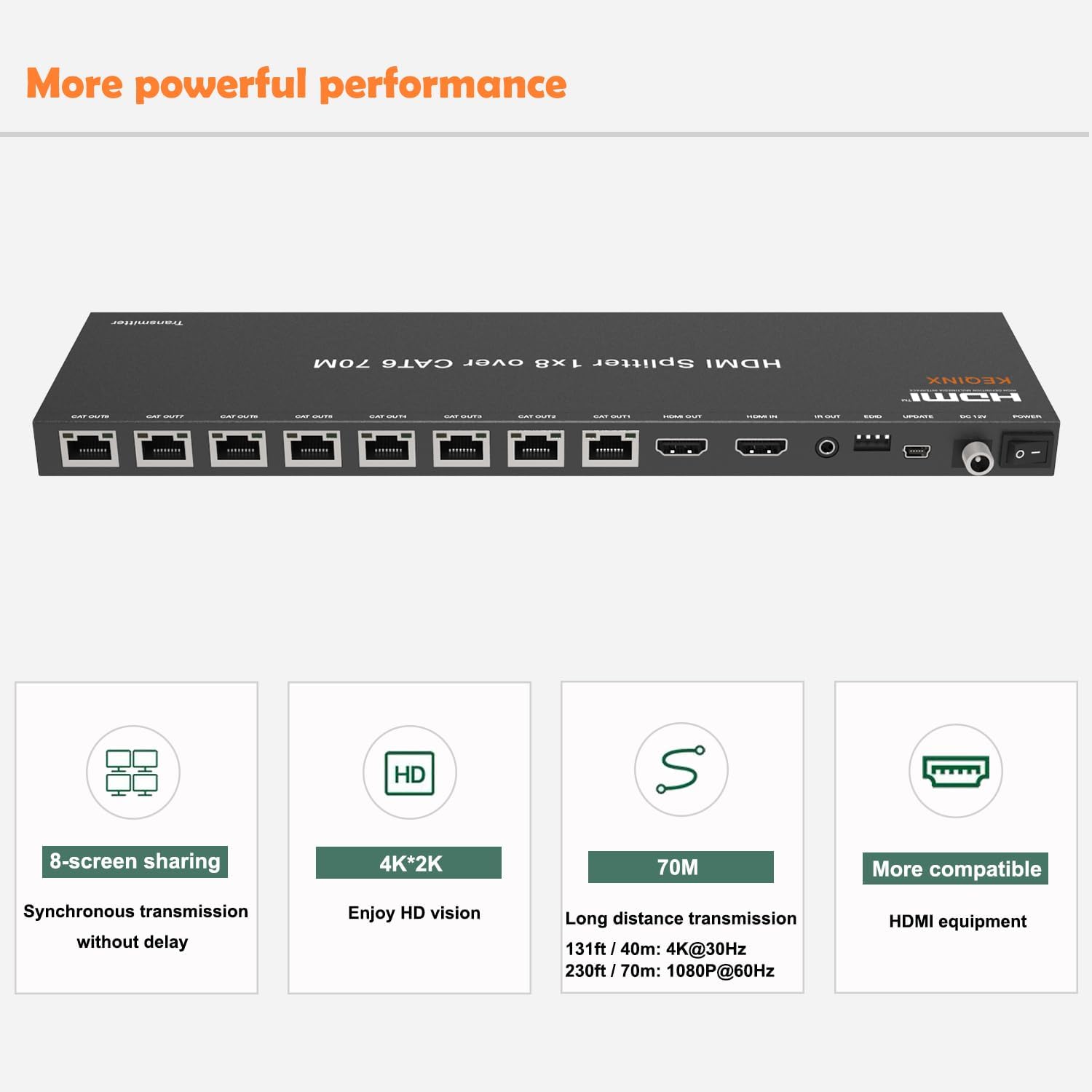

Distance: Support 70m/230ft under 1080P resolution and 40m/131ft under 4K@30hz resolution.
Dimensions: Transmitter: 295mm (W) × 82mm (D) × 18mm (H) Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H)
1x8 HDMI splitter extender
1. HDMI 1.4 and HDCP 1.4 compliant
2. Video resolution up to 4K2K@30Hz(4:4:4) 8-bit
3. Support audio formats: LPCM 7.1CH. Dolby True HD. and DTS-HD
Master Audio
4. Extend the signal transmission distance up to 131ft / 40 meters at the
resolution of 4K30Hz. or 230ft / 70 meters at 1080P@60Hz via a single
CAT6 cable

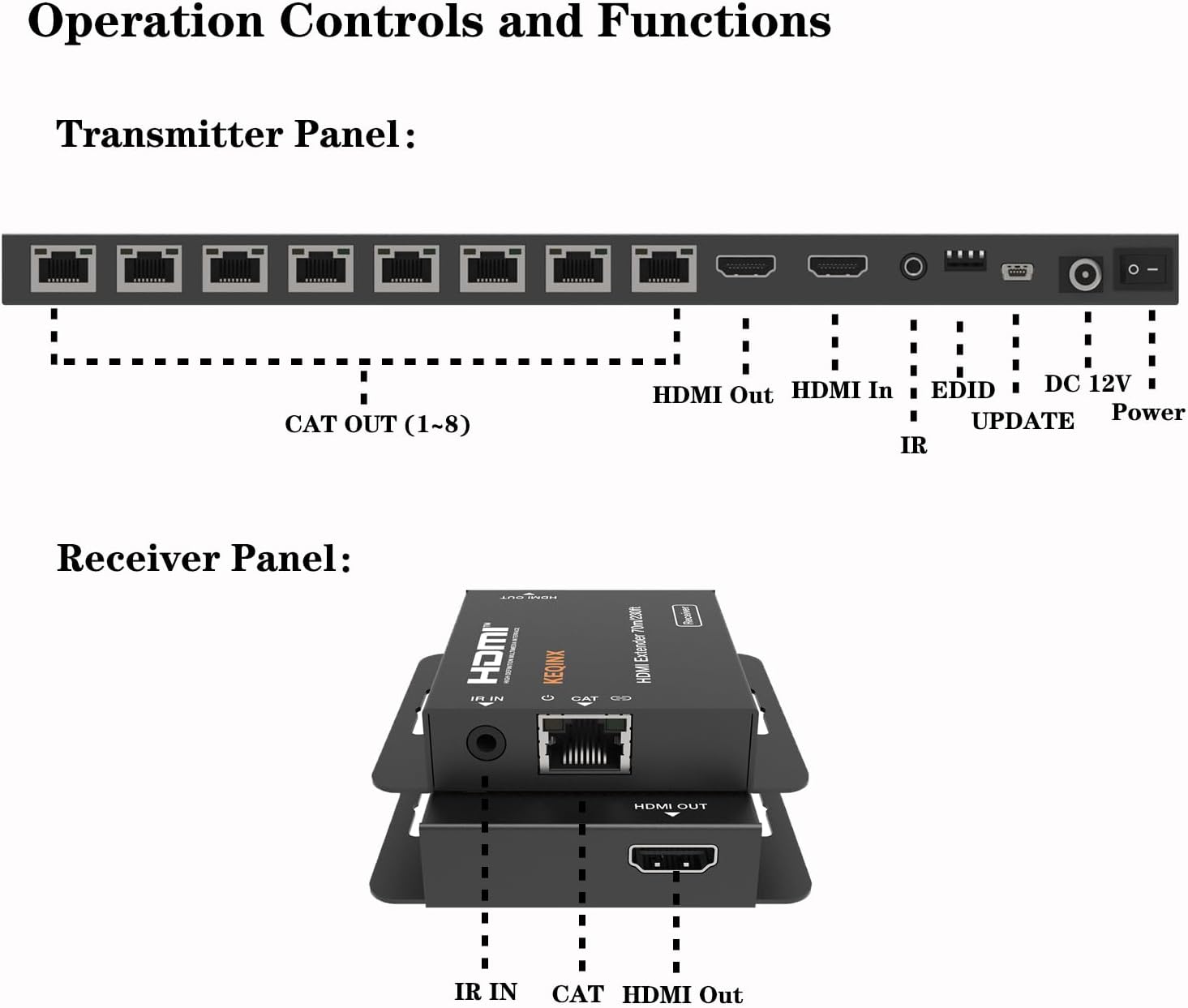

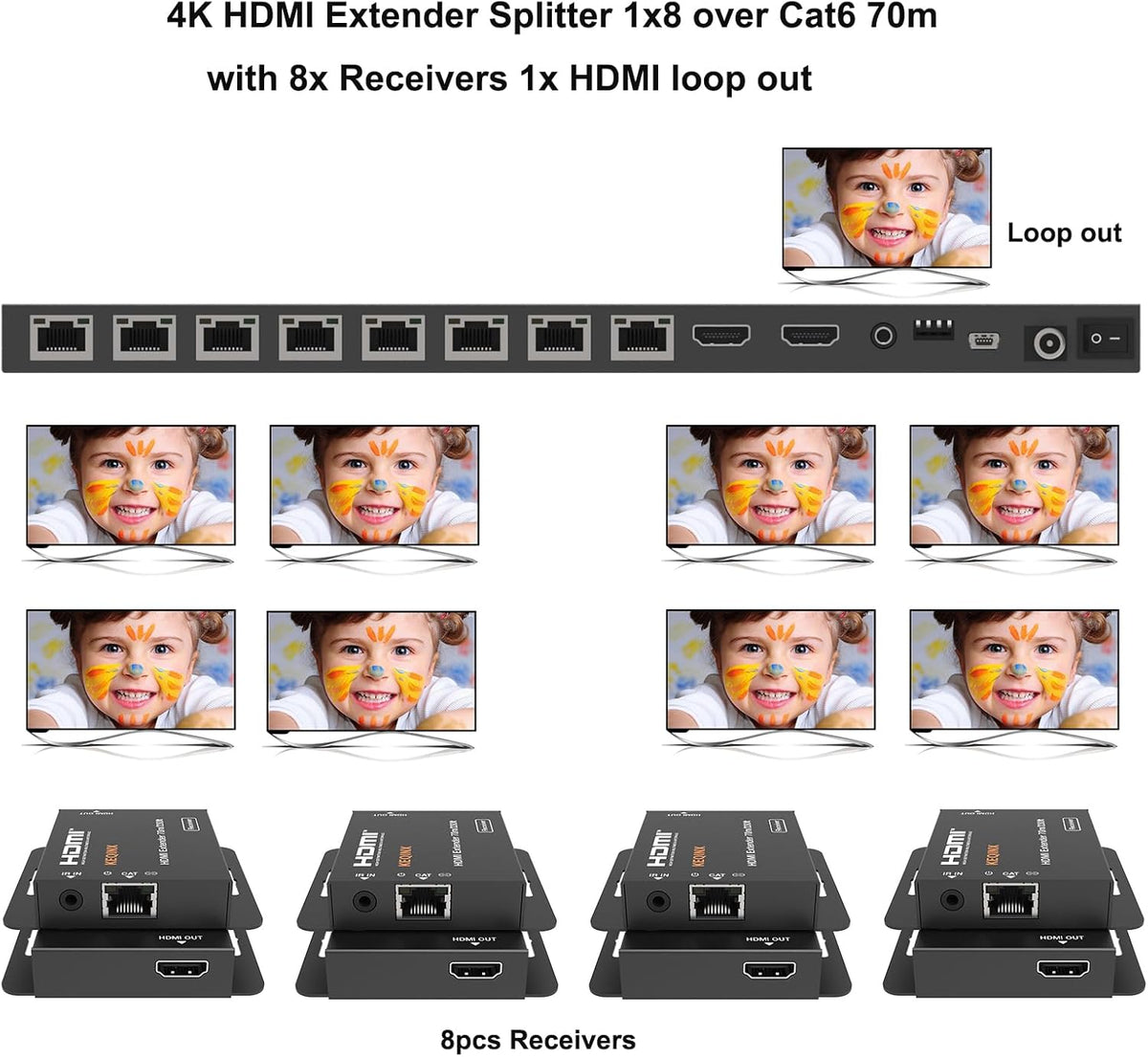

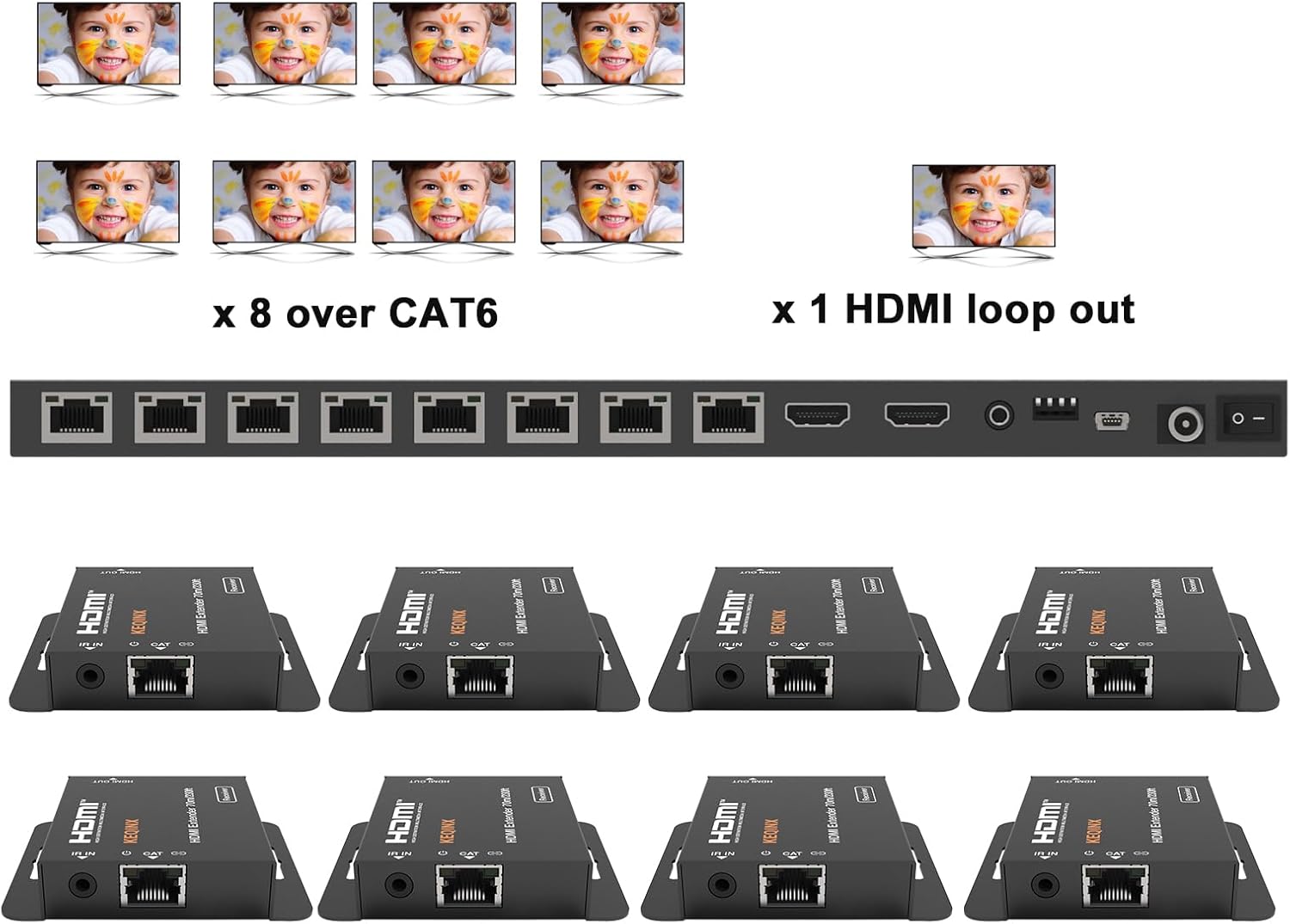

5. Support 1 HDMI input. 1 HDMI loop output and 8 CAT outputs.
6. Advanced EDID management
7. Support one-way POC function (only from transmitter to receiver)
8. Compact design for easy and flexible installation

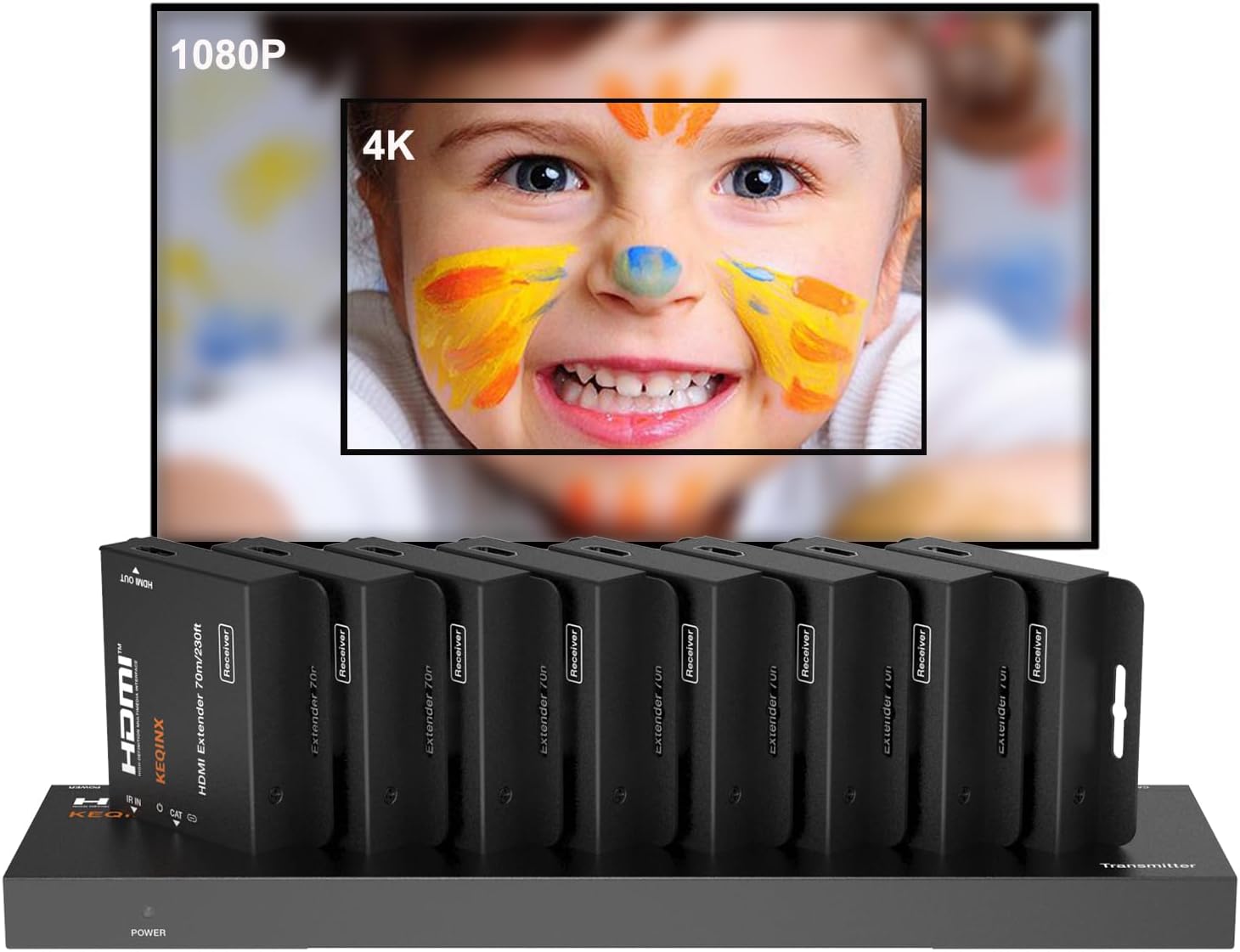

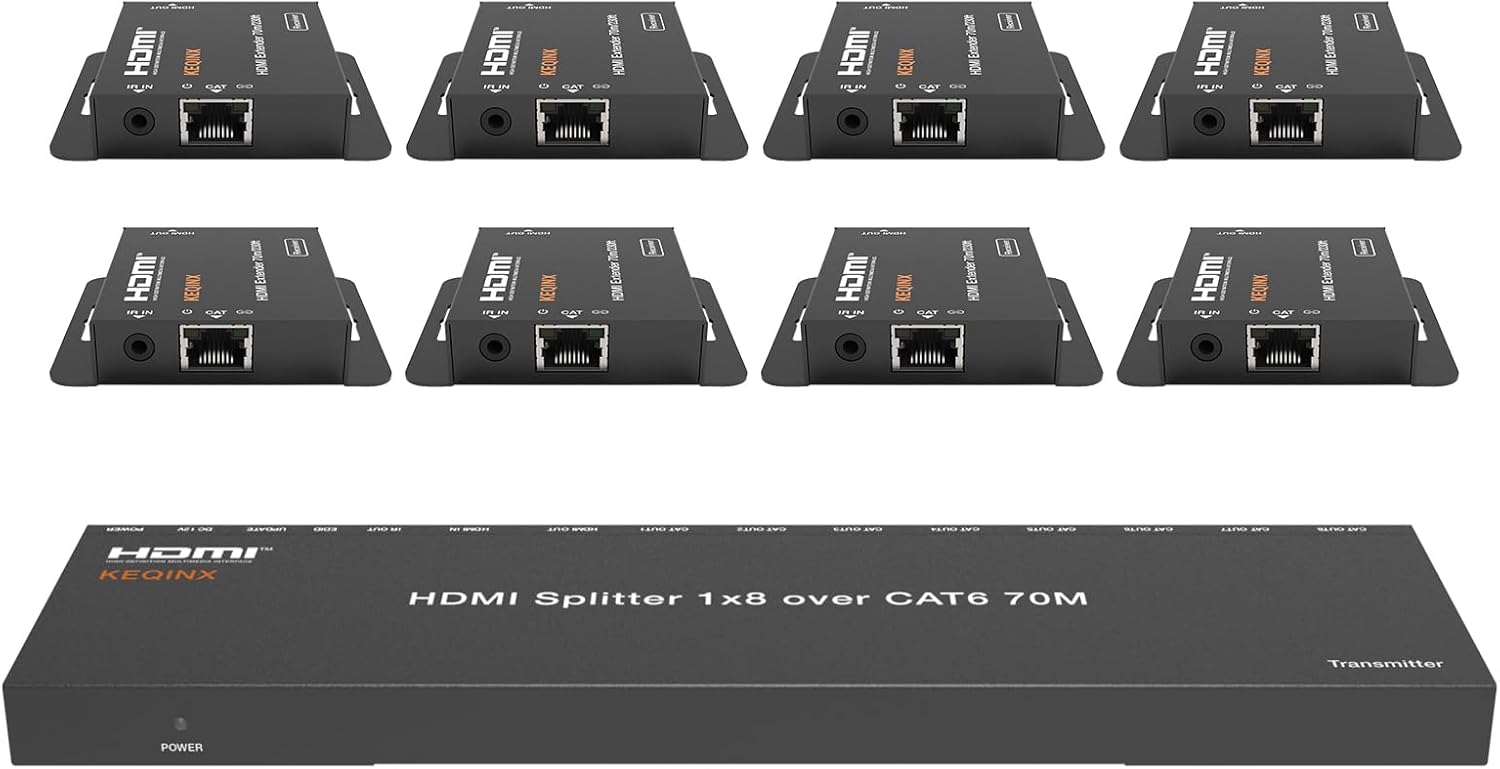

This product include 1x HDMI splitter and 8x Receivers
- Easy connect Splitter to four receivers with Cat6 cable.

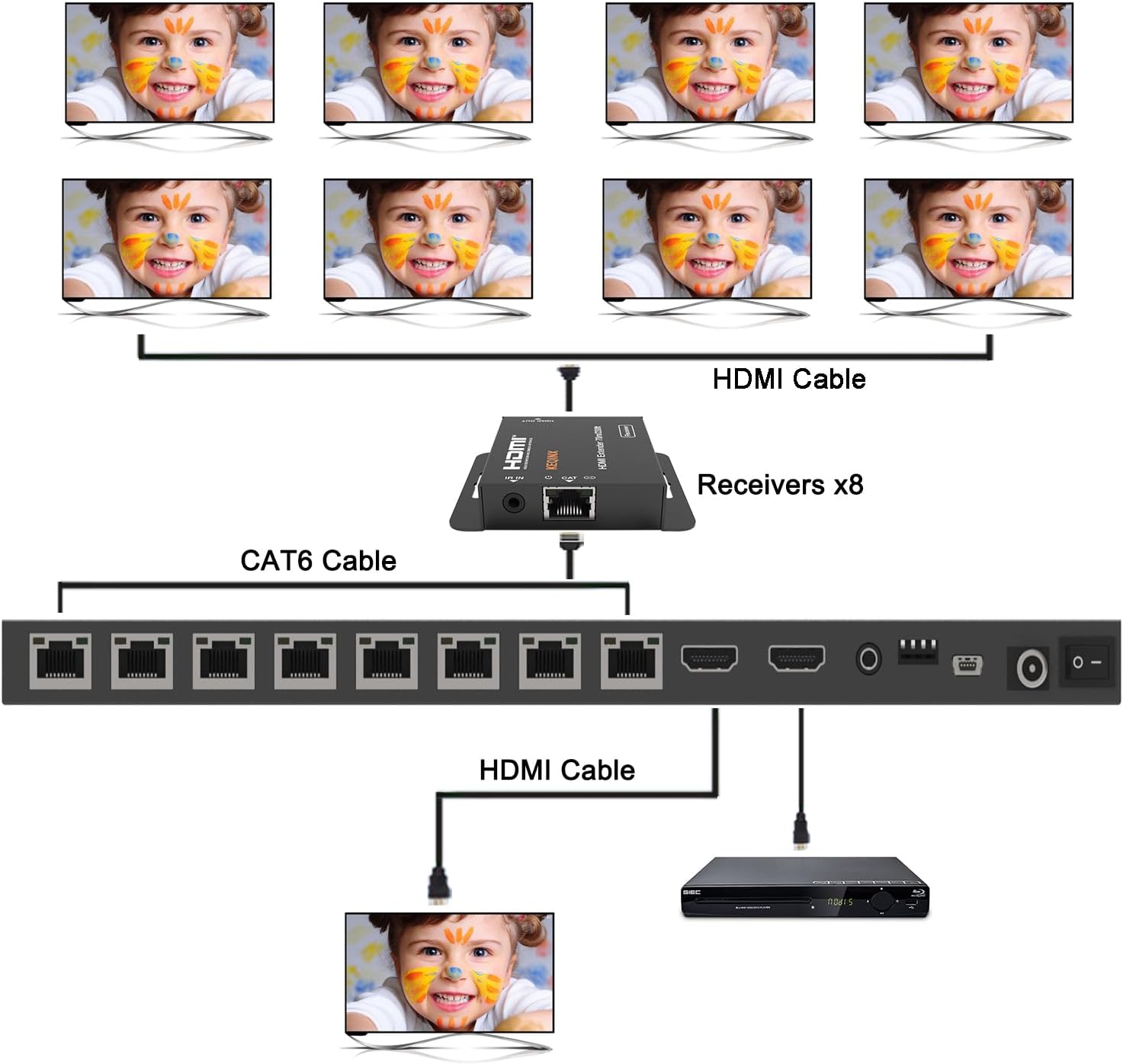

- Connect the HDMI port of the splitter with the HDMI source with the HDMI cable. connect the cat port of the receiver and the cat port of the splitter with the CAT6 cable respectively. and finally connect the HDMI port of the receiver and the HDMI port of the TV with the HDMI cable.
- Plug in the included power supplies.
- Your HDMI extension is now ready.
Support Video resolution :
480i ~1080p50/60Hz. 4Kx2K@30Hz (4：4：4)
HDMI ComplianceHDMI 1.4. HDCP 1.4Video Bandwidth297MHz/10.2GbpsVideo Resolution480i ~1080p50/60Hz. 4Kx2K@30Hz (4：4：4)Color Depth8-bit.10-bit.12-bit (1080p@60Hz); 8-bit (4K30Hz)Color SpaceLPCM 7.1CH. Dolby True HD. and DTS-HD MasterAudioDimensionsTransmitter: 210mm (W) × 83mm (D) × 18mm (H)Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H)Transmission Distance1080P@60--70M/230ft. 4K30 --40M/131ft over CAT6POC12V POC. RX no need power supply1 × HDMI 1×8 Splitter
8 × CAT Receiver
1 × IR Blaster Cable (1.5 meters)
8 × IR Receiver Cable (1.5 meters)
2 × Mounting Ear
1 × 12V/2.5A DC Locking Power Adapter
8 × Machine Screw (KM3*4)
1 × User Manual
